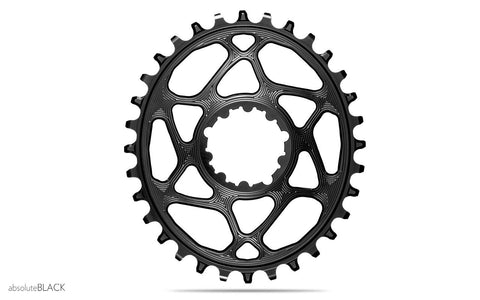

This particular chainring will ONLY work with CN-M9100, 8100 & 7100 Shimano Hyperglide+ 12spd chain due to different thickness & shape of the teeth. The Original one and only absoluteBLACK premium Sram compatible Direct mount BOOST148 1X Oval narrow wide chainrings are designed for GXP, DUB and Long BB30 spindle cranks. Chainring is dedicated for Boost148 bikes. 3mm offset.
This oval chainring with special 3mm offset converts any Sram crank into Boost148 specific setup needed in Boost equipped bikes. Boost and non-Boost Sram cranks are identical. All the offset is achieved by the chainring itself, so you can use any Sram crank for this conversion. Our regular OVAL chainrings for Sram cranks have 6mm offset whether this one has 3mm, but both chainrings look very similar.
|
Size (Mass +/-1g): |
30T (55g), 32T (59g), 34T(66g), |
|
Color |
Black |
|
Compatibility |
SRAM XX1, XX1 Eagle, X01, X01 Eagle, GX Eagle, NX Eagle, SX Eagle, X1, X0, X9, X7, S2210, S1400, Descendant, Stylo, Truvativ AKA and all DUB cranks.Cane Creek eeWings. GXP and Long spindle BB30. BOOST148 bikes. Works ONLY with 12spd Shimano Hyperglide+ chain (HG+) |
|
Material |
cnc machined 7075 Txxx Aluminum. Long-lasting construction. Mud optimized |
|
Finish |
type II anodizing |
|
Chainline |
52mm BOOST148 specific chainline. 3mm offset |
|
Ovality |
Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending |
