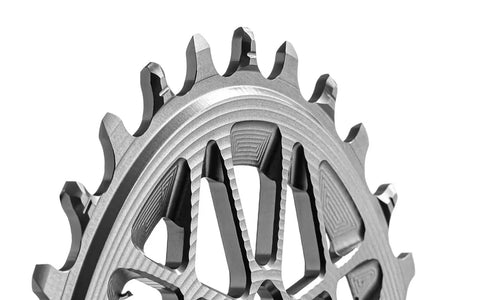

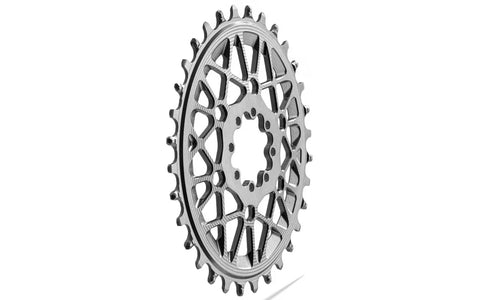

The Original absoluteBLACK Premium direct mount 1X Oval chainrings are specifically designed for Sram T-Type transmission drivetrain. Fits cranks with 8-bolt mounting pattern. Chainring teeth have been specifically redesigned to work in all conditions with narrower chains that inherently have less space to accommodate mud. It is the most Premium oval chainring on the market with scientifically proven performance gains. Chainring offset is 3mm (same as stock part).
|
Size (Mass +/-1g): |
28T (54g), 30T (58g), 32T (64g), 34T(71g), 36T (78g) |
|
Color |

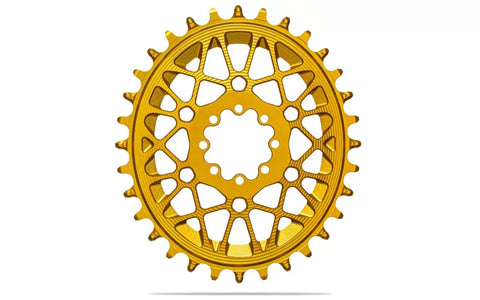

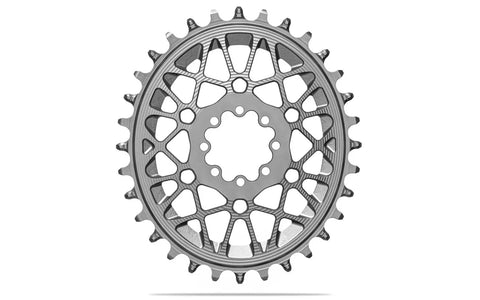

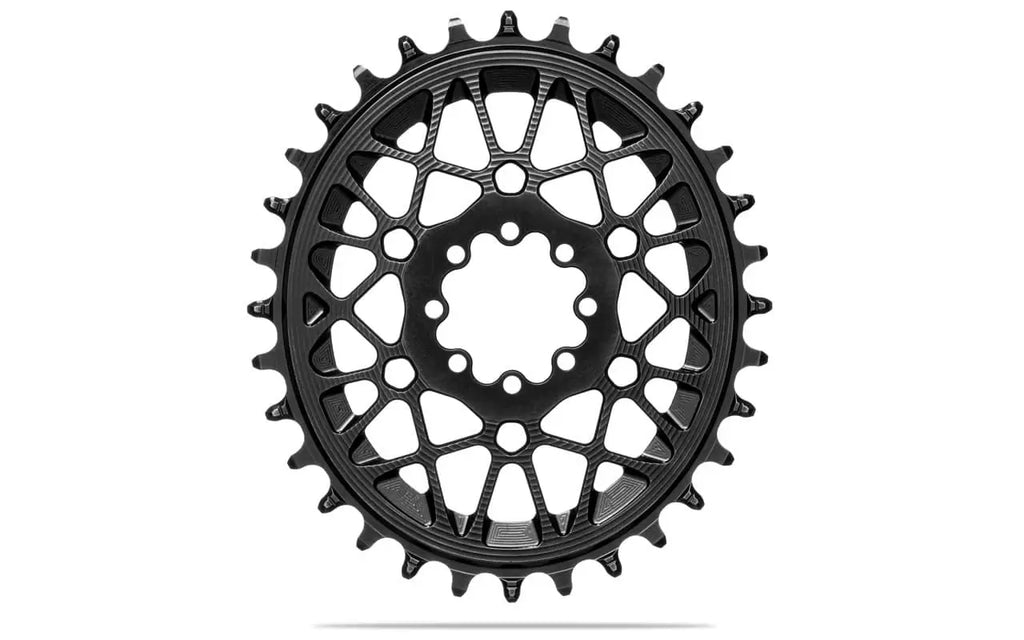

Black, Red, Gold, Titanium |
|
Compatibility |
SRAM XXSL Eagle, XX Eagle, X0 Eagle and other cranks with 8-bolt mounting pattern. Compatible with Sram T-Type Flat Top chains. |
|
Material |
cnc machined 7075 Txxx Aluminum. Long-lasting construction. Mud optimized |
|
Finish |
type II anodizing |
|
Chainline |
55mm. 3mm chainring offset |
|
Ovality |
Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending |
If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):
28T: 128mm ; 30T: 135mm ; 32T: 144mm ; 34T: 152mm ; 36T: 160mm
